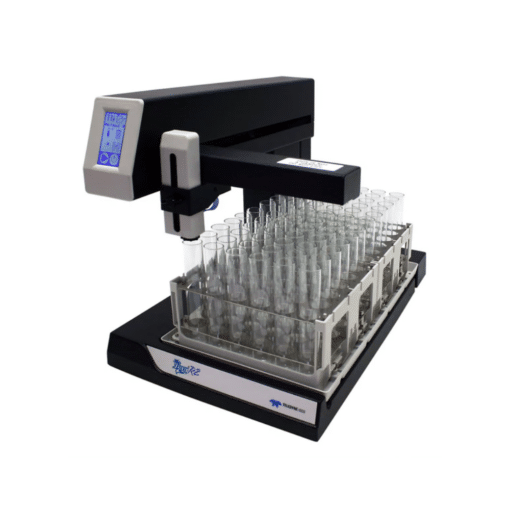

High Flow Foxy® R2 Fraction Collector with Diverter Valve

Product Description

The High Flow Foxy® R2 Fraction Collector with diverter valve is designed for laboratories that require high-volume sample collection with precision and flexibility. This collector can accommodate a variety of vessel sizes and offers an impressive maximum flow rate of 1 L/min, making it ideal for high-throughput environments. Equipped with advanced features like RFID sensors and versatile rack options, the High Flow Foxy® R2 ensures fast, error-free setup and efficient fraction collection for both aqueous and organic solvents.

Key Features

• Rack Options: Multiple rack configurations are available, supporting 13 mm test tubes (144), 16 mm test tubes (100), 18 mm test tubes (72), 25 mm test tubes (36), 1.5 mL microcentrifuge tubes (60), 28 mm diameter scintillation vials (36), 50 mL centrifuge tubes (36), and (2) 96-well microplates.
• High Flow Rate: Supports flow rates up to 1 L/min with 1/4 inch O.D. tubing, perfect for high-throughput applications.
• RFID Sensors: Effortless and error-free rack identification and setup to save time and reduce mistakes.
• Flexible Collection Modes: Choose from time, drop, or volume collection methods, with customizable peak detection using slope, threshold, or time windows.
• User-Friendly Control: Operate the system via the front panel touchscreen, or connect through Ethernet or RS-232 for remote control and integration into existing workflows.
• Durable Construction: Built from high-quality materials like stainless steel, cast aluminum, and PEEK for chemical compatibility and long-lasting performance.
• Peak Detection: Advanced options include slope, threshold, and time windows for precise fraction collection.
• Certifications: CE and CSA certified, ensuring compliance with international safety and performance standards.

Specifications

• Dimensions: 12.25 x 15.5 x 21.0 inches (31.1 x 39.4 x 53.3 cm)
• Weight: 22.9 lbs (10.4 kg)
• Tube Capacity: Holds up to 288 tubes (12/13 mm) with a maximum tube height of 180 mm.
• Flow Rate: Supports up to 1 L/min using 1/4 inch O.D. tubing; 125 mL/min with 1/8 inch O.D. tubing included.
• Peak Detection: Slope, threshold, or time windows for custom collection.
• Collection Modes: Time (1-second intervals), drop (up to 999 drops), or volume (up to 999 units).
• Power: 100-240 VAC, 50-60 Hz, 1 amp max, with an IEC power cord included.
• Materials: Includes stainless steel, polypropylene racks, ECTFE or ETFE funnels, and a PEEK and FFKM diverter valve.
• Automatic Shut-Off: Auto shut-off when racks are full, last tube, or based on external signals.

With its robust design, high flow capacity, and reliable peak detection, the High Flow Foxy® R2 Fraction Collector with diverter valve is the perfect solution for laboratories requiring fast, accurate, and flexible fraction collection.
