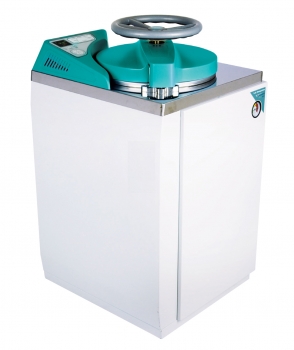

Factory Clearance—ST-50G, 50L Vertical Autoclave with NEMA plug 6-20

Original price was: $8,505.00.Current price is: $3,827.25.

Categories: Jeio Tech Factory Clearance, Factory Clearance Brand: Jeio Tech

Not sure which configuration is right for your application? Schedule a free consultation with our technical consultants today!

Schedule a consultation Have One To Sell?

Description
Reviews (0)

Product Description

Performance

Microprocessor controller and temperature calibration function allows for high precision temperature control.
– Sterilization temperature at 110 to 123°C
– Melting* temperature at 60 to 100°C
* Liquefaction of coagulated agar media.
Automatic sterilization system for unattended operation.
– Heating > Check safe > Sterilization > Sterilization safe > Exhausting > End
Convenient operation modes for various uses.
– Standard modes and program modes are listed in detail as below tables.
Temperature calibration function.

Standard modes	Temp.(°C)	Time(min.)
Decontamination	121	35
Solids sterilization	121	20
Liquids sterilization	121	15
Melting	100	30

Program modes	Temp.(°C)	Time(min.)
Sterilization 1	110 to 123	1 to 999
Sterilization 2	110 to 123	1 to 999
Liquid sterilization	110 to 123	1 to 999
Melting	60 to 100	1 to 999

Convenience

Conveniently monitored by an independent control display, sterilization process display, and pressure gauge.
– VFD for visualization of temp, pressure(optional), timer, warning alert checks.
– LED lamps for sterilization process check.
– Easy pressure check with the standard gauge attached to the front.
Vertical type autoclaves which allow for top loading are suitable for high volume sterilization.
– Baskets are stackable two high or even more levels, which secure inside the chamber space requirements.
Low-maintenance
– The chamber is constructed of stainless steel which is superiorly resistant to corrosion.
– Easy to replace silicone gasket.
Convenient documentation with the optional data recorder.
– Dot type recorder(6 point) allows for precise documentation.

Safety

Mechanical safety devices
– Over current protection.
– Over temperature protection by automatic power cutoff.
– Over pressure protection by automatic and manual safety valve.
Safety warning systems
– Over temperature warning.
– Low temperature warning.
– Low water level warning.
– Low heat warning if the temperature does not reach the sterilization or melting temperature.
– Sterilization fail warning if the operation is unexpectedly stopped during sterilization process.
Slide opening door with plastic cover of low thermal conductivity prevents burns from the contact.

Model		ST-50G	ST-65G	ST-85G	ST-105G
Control		Microprocessor PID control
Chamber volume (L / cu ft)		50 / 1.76	65 / 2.29	85 / 3.0	105 / 3.7
Temperature	Sterilization temp. (℃ / ℉)	110 to 123 / 230 to 253.4
Temperature	Melting temp. (℃ / ℉)	60 to 100 / 140 to 212
Pressure	Sterilization at 121℃ (kg/cm2)	1.1 to 1.2
	Gauge range in analog (Mpa)	– 0.1 to 0.6
	Permissible altitude (m)	Up to 800
Safety		Over temperature protector / Pressure safety valve / Over current protector
Safety		Warning alert (over temp. / low temp. / low heat / sterilization fail / low water level)
Timer		0 to 999 min.
Dimension	Interior (WxH) (mm / inch)	400×458 / 15.75×18.03	400×558 / 15.75×21.97	400×758 / 15.75×29.84	400×908 / 15.75×35.75
	Exterior (W×D×H) (mm / inch)	624x672x870 / 24.57×26.46×34.25	624x672x971 / 24.57×26.46×38.23	624x672x1083 / 24.57×26.46×42.64	624x672x1233 / 24.57×26.46×48.54
	Exterior with exhaust tank (W×D×H) (mm / inch)	722x672x870 / 28.42×26.46×34.25	722x672x971 / 28.42×26.46×38.23	722x672x1083 / 28.42×26.46×42.64	722x672x1233 / 28.42×26.46×48.54
	Door max. opening (W×D×H) (mm / inch)	1012x672x882 / 39.84×26.46×34.72	1012x672x983 / 39.84×26.46×38.7	1012x672x1095 / 39.84×26.46×43.11	1012x672x1245 / 39.84×26.46×49.01
	Basket (ØxH) (mm / inch)	380×180 / 14.96×7.09	380×230 / 14.96×9.05	380×330 / 14.96×12.99	380×405 / 14.96×15.94
	Net weight (Kg / lbs)	94.5 / 208.34	99.5 / 219.36	104 / 229.28	110 / 242.51
Electrical requirements (230V, 50/60 Hz)		14.3A	14.3A	14.3A	21.3A
Cat. No.		AAHL1015K	AAHL1025K	AAHL1035K	AAHL1045K
