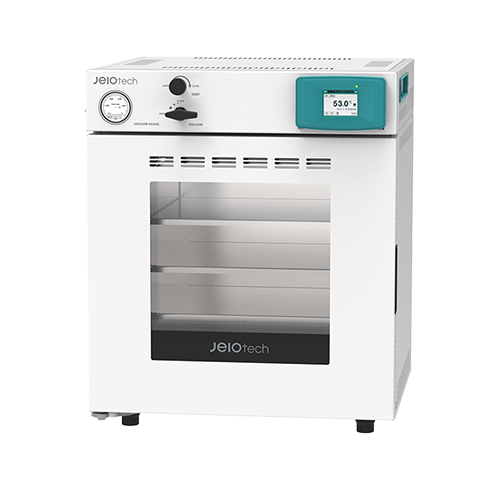

Factory Clearance—OV4-65S Standard Vacuum Oven, 65L

Product Description

Structural Functional Features

• Wide temperature range that can be controlled up to 250°C.
• Improved temperature distribution. (±1.5°C at 100°C)
• 3-point temperature calibration, high temperature accuracy over a wide temperature range.
• Inner stainless steel and aluminum shelves provide excellent corrosion resistance and clean maintenance.
• Protects equipment from overcurrent and over temperature through safety circuits.
• Vacuum line and release line are separated and convenient to use.
• The display is mounted at the top, minimizing floor sizerequirement.

Use Convenience Features

• When a vacuum is formed and maintained, the toughened glass is attached to the gasket, so it is kept confined for long-time repeated use.
• Save and use 3 frequently used temperatures.
• PC connection using RS-232 port and USB port.
• Excellent visibility and viewing angle due to application of 5-inch large LCD.
• Wait On/Off timer. (up to 999 hours 59 minutes)
• Toughened glass viewing window for easy internal viewing.
• Microprocessor PID method for precise temperature control.
• Automatic restart as it was operated after power recovery.
• Monitor via mobile app anytime, anywhere with LC Connected. (mobile monitoring system) (when purchased LC GreenBox)
• Microprocessor PID method for precise temperature control.

Outstanding Safety

• Door structure including buffer system allows for internal pressure release through upper and lower ventilation holes when stable vacuum is formed/maintained and when there is an internal explosion.
• Polycarbonate safety cover provided in case of toughened glass breakage.
• 12 events is recorded in case of door open, error, and etc.
• Top-rated overheating protection system. (registration 10 – 0397583)
• Over temperature limit function.
• Safe product surface, even when operated at upper temperature.
• Malfunction prevented by controller lock function.
• Alarm if set temperature deviation outside of acceptable range.

Vacuum Oven Use Configuration

• It is recommended to use the cold trap bath on the vacuum line to protect the weak vacuum pump against water/solvent or to supply dry air to the sample.
