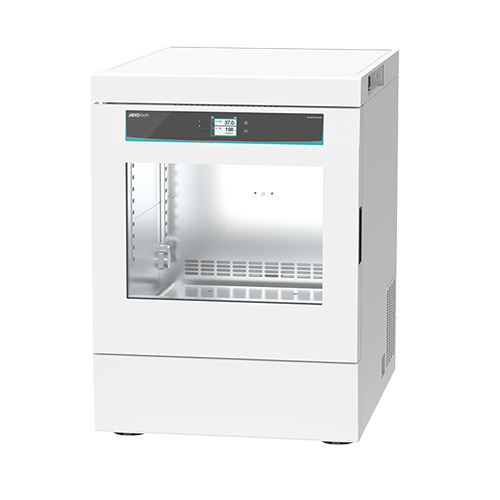

Factory Clearance—ISS-4075 / 4075R Incubated Shaker, 150L

Price range: $6,909.84 through $7,636.86

Model

Clear

SKU: N/A Categories: Jeio Tech Factory Clearance, Factory Clearance Brand: Jeio Tech

Not sure which configuration is right for your application? Schedule a free consultation with our technical consultants today!

Schedule a consultation Have One To Sell?

Product Description

Double stackable for space efficiency

Double-stacked for space saving.
Also, easy to use a general incubator.
120V, 60Hz

Structural Functional Features

Best space-efficient model with double stacking.
Up to 80°C, 500rpm enables setting of various experimental conditions.
Utilized as an incubator using the shelves.
Three operating modes: Temperature & Shaking, Temperature, or Shaking.
Includes internal power outlet.
Shaking structure with minimized vibration.

Use Convenience Features

Accurate rpm and temperature control through temperature auto-tuning / microprocessor PID and calibration.
Monitor via mobile app anytime, anywhere with LC Connected. (mobile monitoring system)
(when purchased LC GreenBox)
Countdown timer (999 hours 59 minutes) of shaking operation.
Intuitive operation with color touch display.
High brightness / low-power LED illumination makes it easy to observe inside.
Spill drain port for internal cleanliness and easy maintenance.

Outstanding Safety

Electronic over temperature protection system.
(advanced over temperature (A-OT) limiter)
Independent precision temperature sensor and controller provides more secure and reliable over temperature protection.
Conventional over-temperature protection system.
(B-OT, backup over temperature limiter)
A backup device against electronic system failure, mechanically preventing over temperature even when there are electronic errors.
Soft start and stop shaking function.
Malfunction prevented by controller lock function.
Displays all information such as device operation and error occurrence.
Overcurrent protection device restricts operation when objects are caught inside the system and shaking is not possible.

Smart Self-diagnosis

Real-time self-diagnostics to check equipment for abnormal conditions.
Alarm is generated by monitoring difference between actual rpm/temperature and set rpm/temperature.
Automatic rpm adjustment when device instability occurs.
(high rpm, overload, weight imbalance, etc.)
Detects abnormal conditions relating to the platform on which the sample is placed and stops the operation.
Automatic restart as it was operated after power recovery.

Weight	445 lbs
Dimensions	28 × 38 × 45 in

Temperature
Range (℃ / ℉)	Amb. +5 to 80 / Amb. +9 to 176
Fluctuation at 37℃ (±℃ / ℉) in flask	0.1 / 0.18
Variation at 37℃ (±℃ / ℉) in flask	0.5 / 0.90
Refrigerator (Hp)	–
Shaking system
Motion type	Orbital
Speed range (rpm)	20 to 500 (stackable : 20 to 250)
Max. speed per permissible load (rpm)	500 (max. 10 kg / 22.0 Ibs) 400 (max. 21 kg / 46.3 Ibs) 250 (max. 21 kg / 46.3 Ibs) – Stacked
Amplitude size (mm / inch, dia.)	19.1 / 0.75
Speed stability2) (rpm, %)	±1
Timer (count-down)	999 hr 59 min.
Dimension
Chamber volume (L / cu ft)	150 / 5.3
Platform (W x D, mm / inch)	450 x 450 / 17.7 x 17.7
Interior (W x D x H, mm / inch)	540 x 540 x 518 / 21.3 x 21.3 x 20.4
Exterior (W x D x H, mm / inch)	678 x 895 x 934 / 26.7 x 35.2 x 36.8
Quantity of shelves (standard/max.)	2 / 11
Net weight (Kg / lbs)	183 / 403.4
Electrical requirements (120V, A)	60Hz, 9.5

1) The temperature control range of the ISS-3075 and ISS-4075 models are from 5°C above the ambient temperature (15°C to 40°C) to 80°C.
The temperature control range of the ISS-3075R and ISS-4075R models is from 20°C lower than the ambient temperature. (18°C to 35°C) of the device to 80°C. (However, the lowest control temperature is 4°C)
2) Actual rpm allowable error for set rpm is ±1rpm if setting is less than 100rpm, ±1% if setting is higher than 100rpm.
