    Product Description

    The new VA2 G4 with Centurion Touchscreen controller is NSF-certified and available in 12-inch opening model for mouse and rat cages, with standby height that easily activates standby mode.

    VIVA® G4 (VA2 G4) is comprised of bright illumination using industry-leading dimmable LED combined with an ergonomically sloped front design. VIVA® G4 Universal Workstation is specifically devised for optimum work comfort making it a complete solution to your need for ergonomics, reinforced safety and operations efficiency in animal handling operations.

    Features

    VA2 G4 Homescreen min - Esco VIVA® G4 Class II Type A2 Animal BSC

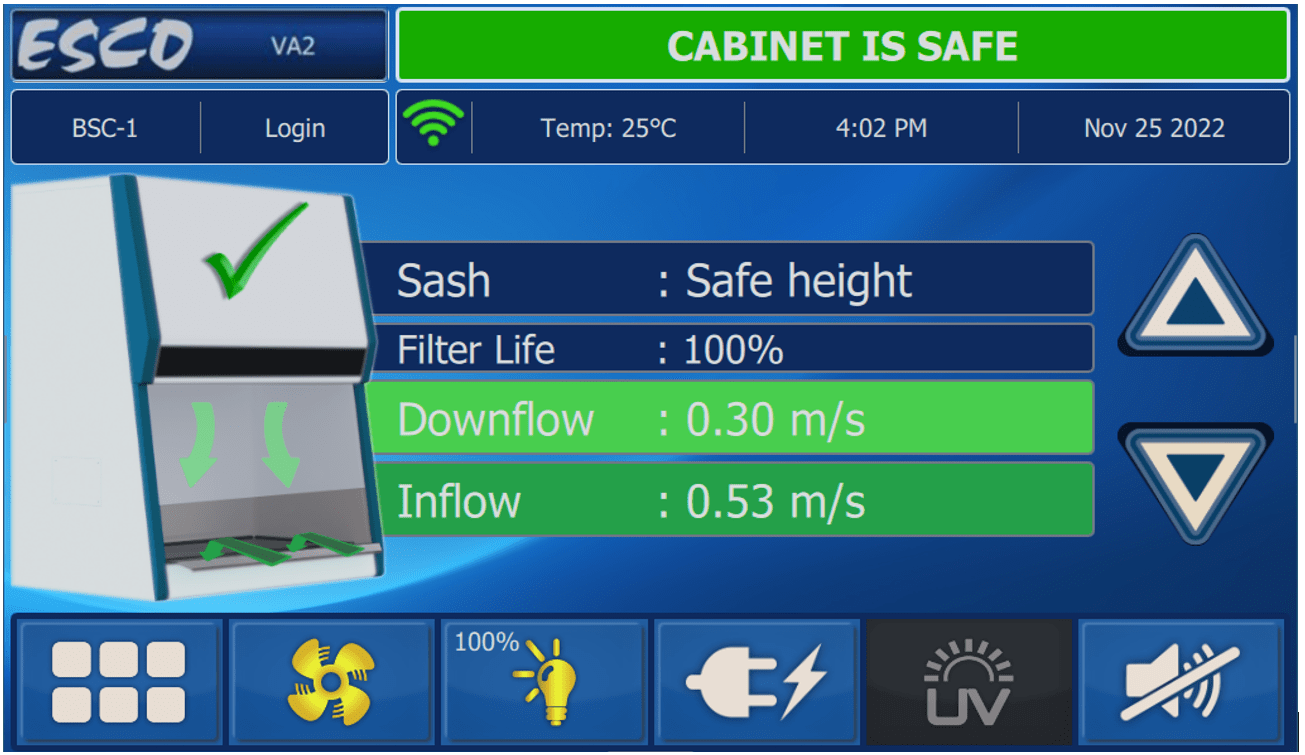

    Centurion Touchscreen Controller

    • Intuitive, comprehensive, and easy-to-understand
    • Virtually comprehensible safety information and cabinet alarms via 3D BSC diagram
    • Defined details of alarm types with clear instructions for proper intervention
    • Centered and angled down for easy reach & viewing
    • Selectable Quickstart mode for fast operation
    Dimmable LED min - Esco VIVA® G4 Class II Type A2 Animal BSC

    Dimmable LED

    • Adjustable work zone brightness
    • Ideal light intensity of 1000 lux
    • Saves energy and optimizes work comfort
    Tray Support beams and holder min - Esco VIVA® G4 Class II Type A2 Animal BSC

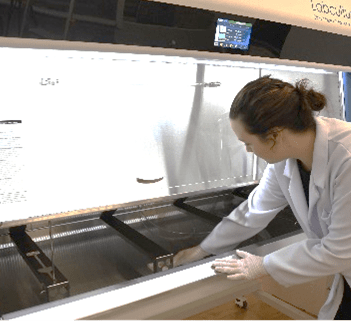

    Tray support beams and holder

    • Support beams for less vibration and holder for easy drain pan cleaning
    USB - Esco VIVA® G4 Class II Type A2 Animal BSC

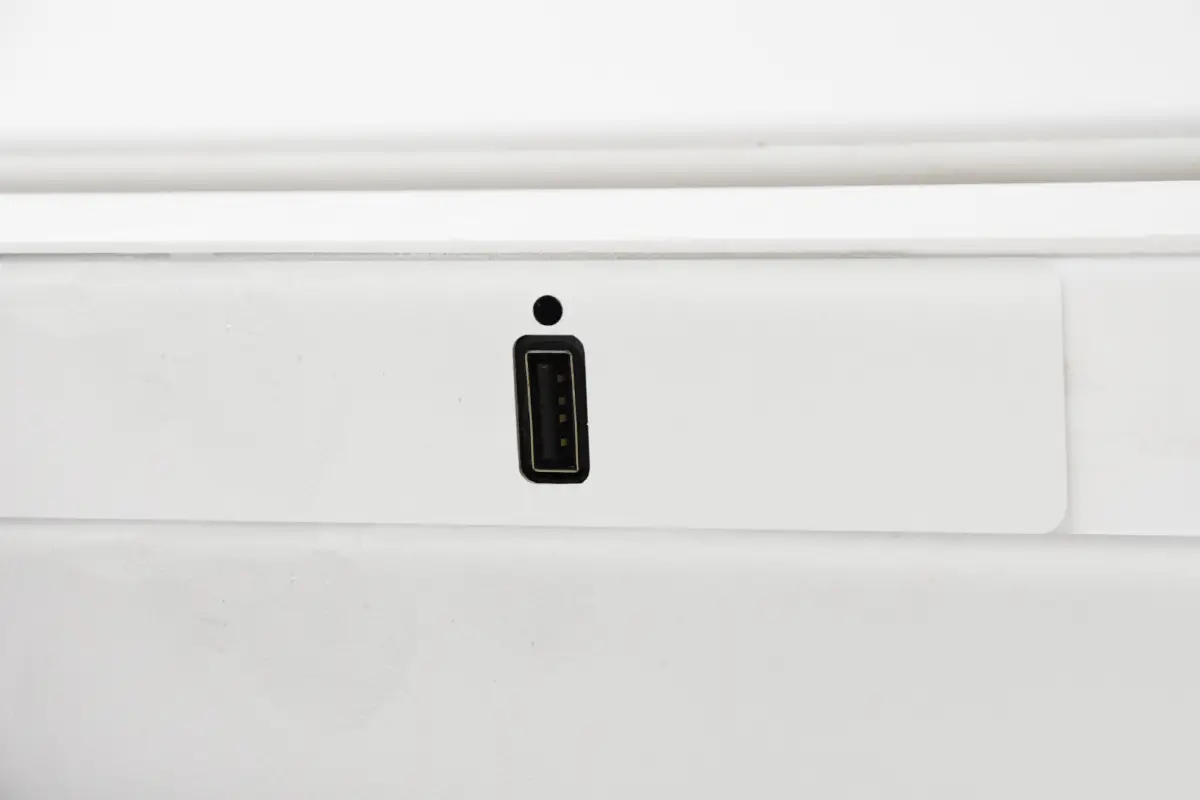

    USB Port and Remote Modbus

    • USB port to access cabinet data log and BMS connectivity
    • Newly integrated Remote Modbus feature for users to securely access the cabinet remotely from external devices.
    Constructi min 1 1200x800 - Esco VIVA® G4 Class II Type A2 Animal BSC

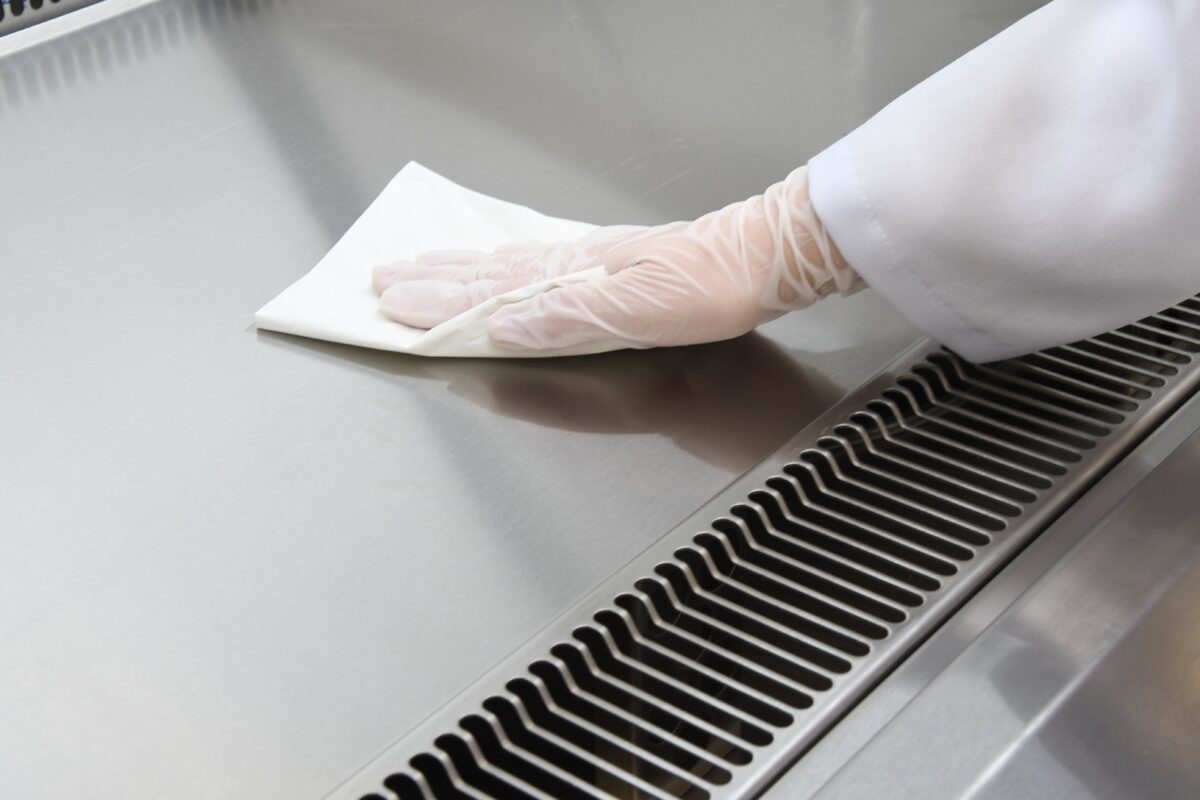

    Cabinet Construction

    • Stainless steel side walls with side capture zones and negative pressure to optimize containment
    • Single-piece work tray, spill retaining and easy to clean
    transparent leaves shutterstock 1940x900 29637 1400x788 - Esco VIVA® G4 Class II Type A2 Animal BSC

    Green Product

    • Equipped with energy-efficient DC ECM that allows up to 70% energy savings vs AC motor
    • Extremely low energy consumption
    • Standby mode allows reduced power consumption by 80%
    ulpa filter - Esco VIVA® G4 Class II Type A2 Animal BSC

    ULPA Filter

    • 10x filtration efficiency compared to the HEPA filter
    • Creates ISO Class 3 work zone instead of industry-standard, ISO Class 5
    • Same 10 years filter life and replacement cost as HEPA filters

    *99.999% at 0.1 to 0.3 micron, ULPA as per IEST-RP-CC001.3 USA
    *>99.999% at MPPS, H14 as per EN 1822 EU

    isocide antimicrobial powder coating - Esco VIVA® G4 Class II Type A2 Animal BSC

    Isocide™ Antimicrobial Powder Coating

    • Eliminates 99.9% of surface bacteria within 24 hours of exposure
    VA2 Vivarium Mute Screen min 1 1367x800 - Esco VIVA® G4 Class II Type A2 Animal BSC

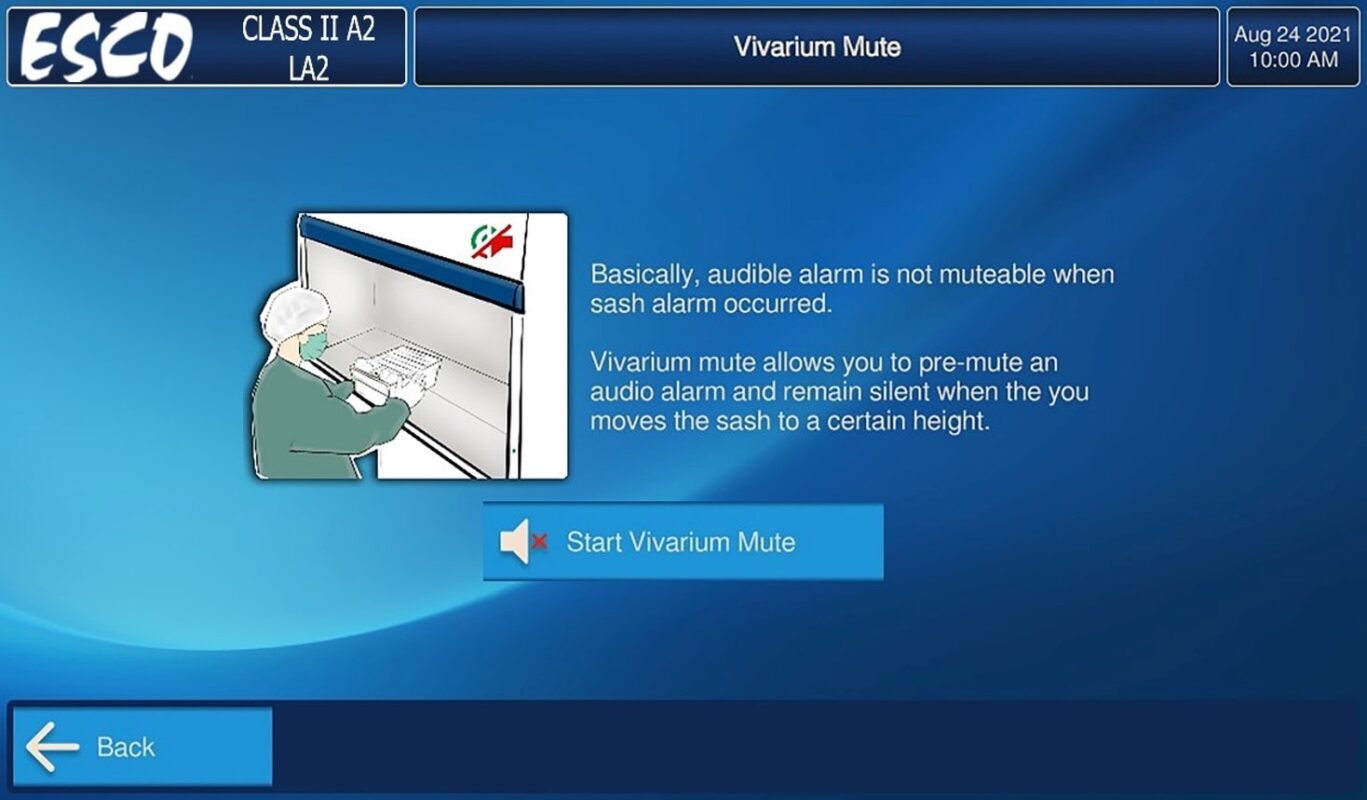

    Vivarium mute

    • Allows users to mute the sash unsafe alarm during large equipment loading such as a rat cage.
    General Specifications VA2-4S8 G4 12” / VA2-4S9 G4 12” VA2-5S8 G4 12” / VA2-5S9 G4 12” VA2-6S8 G4 12” / VA2-6S9 G4 12”
    Nominal Size 1.2 meter (4′) 1.5 meter (5′) 1.8 meter (6′)
    External Dimensions (W x D x H) 1489 x 919 x 1971-2581 mm
    (58.8″ x 36.2″ x 77.6″-101.6″)    		 1799 x 919 x 1971-2581 mm
    (70.8″ x 36.2″ x 77.6″-101.6″)    		 2104 x 919 x 1971-2581 mm
    (82.8″ x 36.2″ x 77.6″-101.6″)
    Internal Work Area (W x D x H) 1220 x 625 x 720 mm
    (48.0″ x 24.6″ x 28.3″)    		 1525 x 625 x 720 mm
    (60.0″ x 24.6″ x 28.3″)    		 1830 x 625 x 680 mm
    (73.2″ x 24.6″ x 28.3″)
    Working Area 0.62 m² (6.7 sq.ft) 0.78 m² (8.4 sq.ft) 0.94 m² (10.1 sq.ft)
    Maximum Sash Opening 575 mm (22.6”)
    Working Opening 305 mm (12”)
    Airflow Velocity
    (Inflow / Downflow)    		 0.53 m/s (105 fpm)
    0.30 m/s (60 fpm)    		 0.53 m/s (105 fpm)
    0.35 m/s (70 fpm)    		 0.53 m/s (105 fpm)
    0.35 m/s (70 fpm)
    Airflow Volume
    (Inflow / Downflow)    		 710 m³/h (420 cfm)
    771 m³/h (461 cfm)    		 890 m³/h (525 cfm)
    1128 m³/h (662 cfm)    		 1065 m³/h (630 cfm)
    1349 m³/h (794 cfm)
    Required Exhaust (with thimble) 1070 m³/h (630 cfm) 1340 m³/h (790 cfm) 1610 m³/h (950 cfm)
    ULPA Filter Efficiency >99.999% at 0.1 to 0.3 micron (IEST-RP-CC001.3 USA)
    >99.999% at MPPS, H14 (EN 1822 EU)
    Sound Emission 60 dBA 65 dBA 65.9 dBA
    LED Lamp Intensity 1000 lux (93 foot-candles)
    Main Body Construction Electro-galvanized steel, white oven-baked epoxy-polyester Isocide™ antimicrobial finish, 1.5 mm (16 gauge)
    Workzone Stainless steel type 304, no.4 finish, 1.5 mm (16 gauge)
    Net Weight (with stand) 287 kg (633 lbs) 381 kg (840 lbs) 400 kg (882 lbs)
    Shipping Weight (with stand) 350 kg (772 lbs) 439 kg (968 lbs) 506 kg (1116 lbs)
    Shipping Dimensions (W x D x H) 1400 x 950 x 2250 mm
    (55.1″ x 37.4″ x 88.6″)    		 1650 x 950 x 2250 mm
    (64.9″ x 35.0″ x 74.8″)    		 2200 x 890 x 1900 mm
    (86.6″ x 35.0″ x 74.8″)
    Shipping Volume 2.5 m³ 3.0 m³ 3.6 m³
    Notes * Only VA2-4S_ G4 12″ and VA2-6S_ G4 12” are NSF-certified models.
    ** Depth with armrest removed: 815 mm (32.1″) without SLC stand, 852 mm (33.5″) with stand.
    *** Noise measured in open field. Room conditions may add 3–4 dBA.
