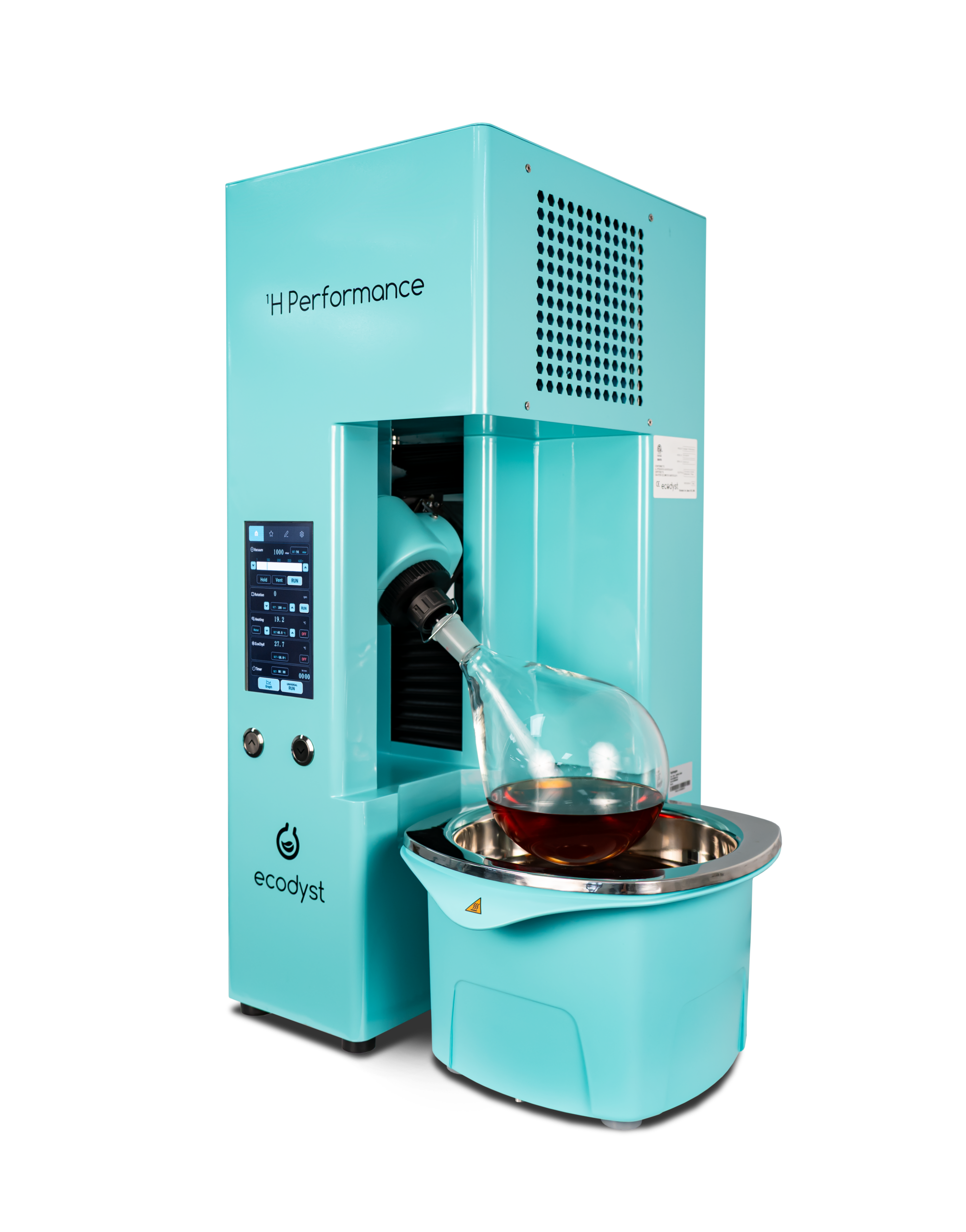

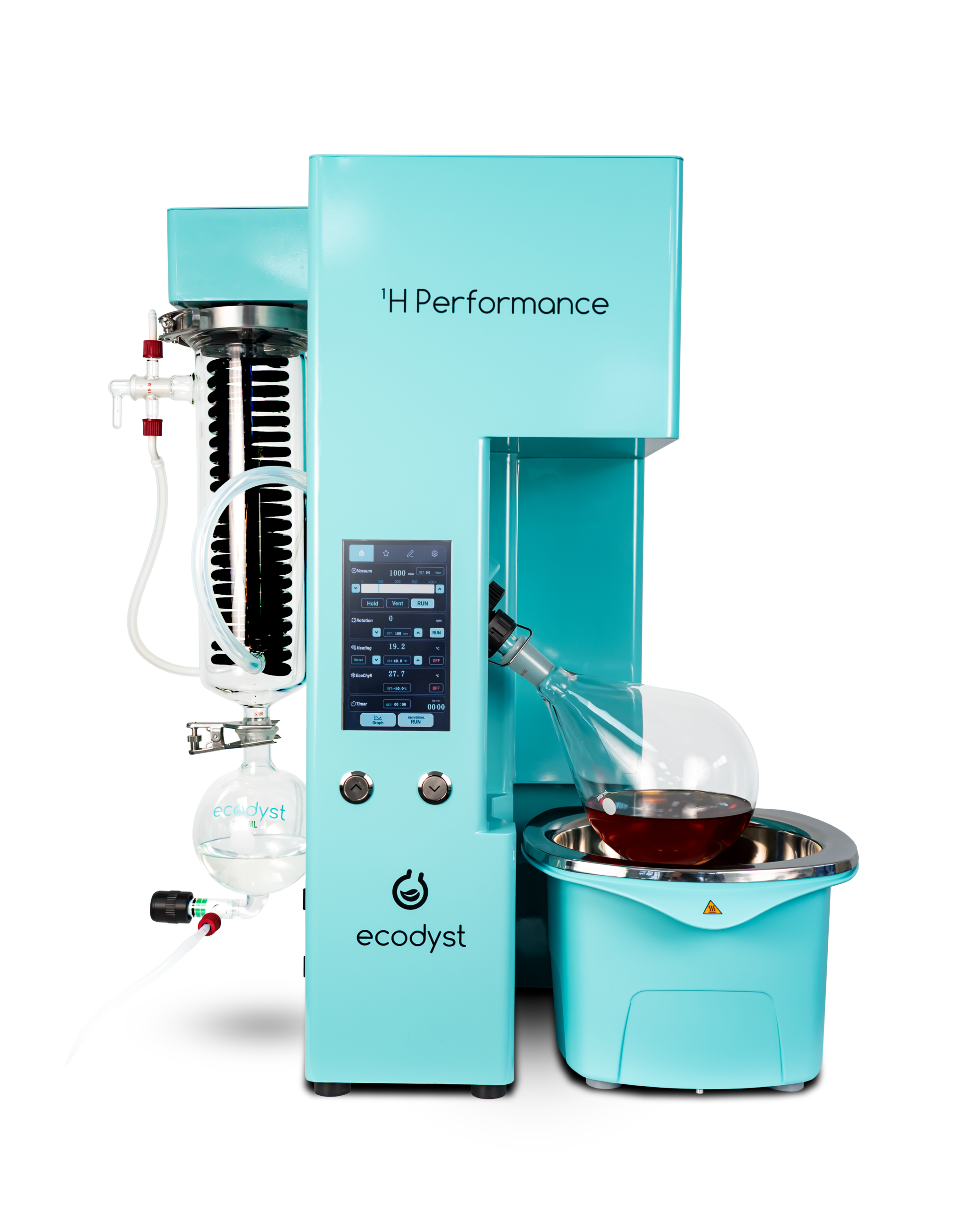

Ecodyst 1H Performance Modern Rotary Evaporator, Rotovap
$14,999.00
2-Year Factory Warranty
Not sure which configuration is right for your application? Schedule a free consultation with our technical consultants today!
Schedule a consultationProduct Description
| Hydrogen 1H Performance Rotary Evaporator, 115V or 230V, Touchscreen with built-in vacuum controller, complete with glassware |
The Ecodyst 1H Performance Rotary Evaporator delivers precision, efficiency, and user-friendly operation for demanding laboratory applications. Designed with the operator in mind, this advanced rotary evaporator combines robust engineering with innovative features to streamline solvent evaporation and concentration tasks.
Key Features & Benefits
- Eye-Level Touchscreen Display – Effortlessly control and monitor all functions with an intuitive eye-level interface.
- Enhanced Lift System – Upgraded motor and driver provide higher torque for faster, smoother lift operation, with convenient physical buttons for precise adjustment.
- Expanded Memory & Automation – Double storage capacity for method programs and automatic shutdown features for both condenser (15 or 30 min) and heating bath (30 or 60 min) when idle, saving energy and extending equipment life.
- One-Touch Vacuum Venting – Quickly release vacuum with a single button for safe and efficient operation.
- Wider Rotary Access – Spacious design allows easy handling of evaporation flasks.
- Motor Protective Shroud – Shields the DC brushless motor for reliable, long-term performance.
- Internal System Upgrades – Photoelectric sensor improvements, enhanced oil seals, and process optimizations ensure durability and smooth operation.
| Model | 1H Turbo | 1H performance | |
| Performance | Evaporating flask volume | 25-2000mL | 25-3000mL |
| Receiving flask volume | 1000-2000mL | 1000mL | |
| Rotation speed range | 20-300 rpm | 20-280 rpm | |
| Heating bath medium & temp. | Water: RT+5~99℃ | Water: RT+5~99℃,
Oil: RT+5~180℃ |
|
| Temp. control accuracy | water: ± 1℃ ；oil: ±3℃ | ||
| Direction of rotation | Clockwise | Clockwise and Counterclockwise | |
| Features | Display | Touchscreen | |
| Vacuum controller | Built-in vacuum controller | ||
| Lifting mode | Automatic | ||
| Motor function | DC brushless motor | ||
| Condenser (EcoChyll) | Cooling capacity | ~ 1190 to 5065 Btu/h (348 to 1483 Watts) | |
| Condenser temp. range | ~ -5 to -50oC | ||
| Structure and composition | Main motor DC brushless | DC brushless motor | |
| Condenser | Halar coated stainless steel coil | ||
| Vacuum seal | PTFE and Teflon Coating | ||
| Heating bath | Interior water bath size | φ230mmx130mm | φ254mmx140mm |
| Water bath material | Stainless steel with corrosion resistant coating | Stainless steel | |
| Heating bath power | 1000W | 1300W | |
| Temperature range | 5~35℃ | ||
| Voltage/Frequency | 100-120V / 200-240V, 50/60Hz | ||
| Warranty | Two years | ||
| Weight | 1600 oz |
|---|---|
| Dimensions | 40 × 48 × 48 in |
