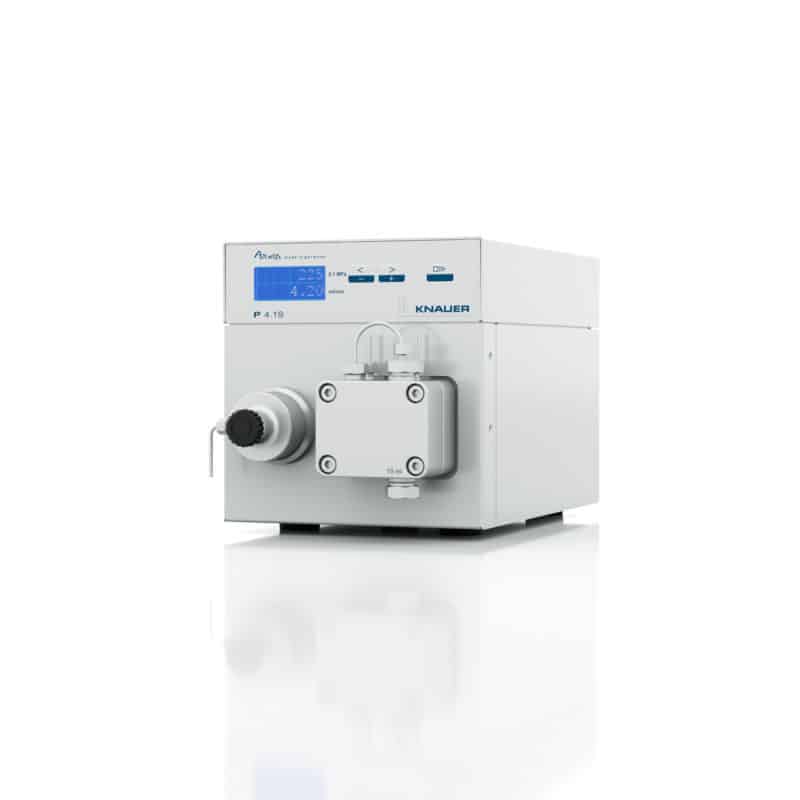

With its small footprint, the compact dual piston pump AZURA P 4.1S can be used for a wide range of laboratory tasks. A pressure rating of up to 400 bar and chemical resistance to a wide range of eluents make it the perfect choice for LC and dosing applications. Pump heads with maximum flow rates of 10 and 50 ml/min are available.
Moreover, its exchangeable pump head allows adaptation of the pump for delivery of aggressive media and bioinert applications. The pump head can be heated or cooled with optional accessories.
| Max. flow rate | 50 ml/min |
|---|---|
| Flow rate range | 0.01−50 ml/min |
| Flow rate increment | 0.01 |
| Maximum delivery pressure [psi] | 2180 psi |
| Maximum delivery pressure [MPa] | 15 MPa |
| Maximum delivery pressure [bar] | 150 bar |
| Pump head materials | Stainless Steel |
| Maximum viscosity | 100 cp |
| Liquid temperature range | 4−60 °C (39.2−140 °F) |
| Gradient | Isocratic |
| Leak management | no |
| Wetted materials | GFP (graphite fiber reinforced PTFE), ruby, sapphire, Titanium |
| Pump features | Piston seal wash, Purge valve (manual), Standalone control and programming, Integrated pressure sensor |
| Note | Pressure sensor membrane made of stainless steel; limited wetting in fluidic path |
| Best working conditions | 1.0−40.0 ml/min |
|---|---|
| Continuous working conditions | 3−25 ml/min |
| Flow rate accuracy | ±2% |
| Flow rate accuracy conditions | 5 – 50% of flow range using ethanol/water 10:90 |
| Flow rate precision | ≤ 0.5 % RSD |
| Flow rate precision conditions | measured at 1 ml/min using ethanol/water 10:90 |
| Pump type | Ultra-compact high pressure pump |
| Pulsation compensation | no |
| Active piston seal wash | no |
| Piston seal washing | yes |
| System protection |
|
| Pump Outlet thread | Female UNF 10-32 (coned) |
| Pump head inlet (standard) | 1/4″-28 UNF (flat bottom) |
| Pump head outlet (standard) | 10−32 UNF (coned) |
| Interfaces | display |
|---|---|
| Control | RS-232; analog; button on device |
| Analog inputs | 0−10V |
| Power supply | 100−240 V; 50−60 Hz |
|---|---|
| Dimensions | 121 x 129 x 220 mm |
| Weight | 2.3 kg |
| Leak sensor | no |
| Ambient conditions | temperature range: 10–40 °C; 50–104 °F air humidity: below 90 % humidity (non condensing) |
