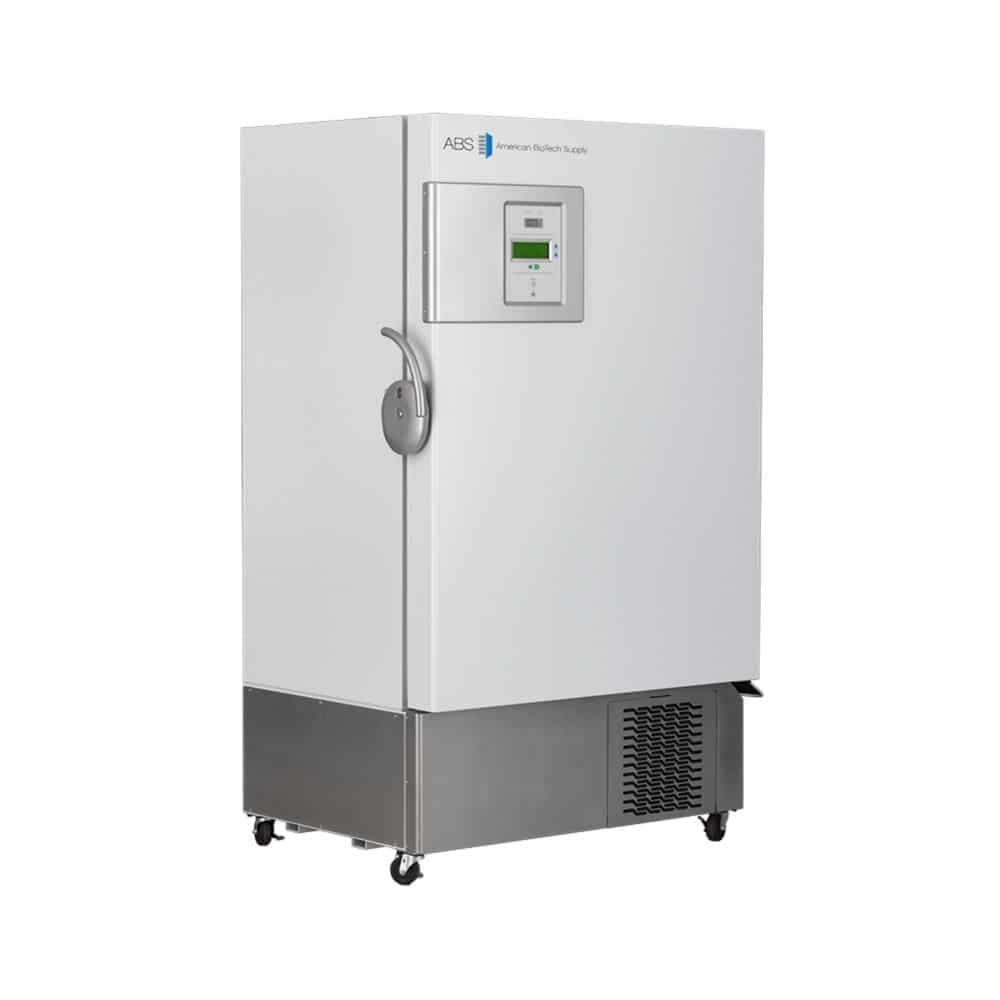

21 cu. ft Ultra Low Temperature Freezer

Product Description

The American Biotech Supply Ultra Low Temperature Freezers deliver rich features and benefits for the most demanding cold storage applications. Designed to utilize standard racks, this unit offers high efficiency with low noise by utilizing two high efficiency compressors that keep decibel levels low, while still having 300 BTUh reserve capacity.

The interior of the unit features a triple gasket seal, vacuum relief port, five double walled insulated doors & 5 1/2 – 6″ of urethane insulation in critical areas. Units are made in the USA and are UL and C-UL listed.

Details

• 21 CU.FT. CAPACITY
• TEMPERATURE RANGE: -50°C TO -86°C
• FOUR STAINLESS STEEL SHELVES, ADJUSTABLE ON ½” CENTERS
• CAM ACTION HANDLE FOR ONE HAND LATCHING OF EXTERIOR DOOR
• HANDLE SUPPLIED WITH KEY LOCK AND DOOR SWITCH FOR AUDIBLE AND VISUAL ALARMS
• FOUR HEAVY DUTY SWIVEL CASTERS WITH LOCKS
• VACUUM RELIEF PORT FOR QUICK ACCESS AFTER DOOR CLOSURES
• CFC-FREE REFRIGERANT
• TWO YEAR PARTS AND LABOR WARRANTY, PLUS AN ADDITIONAL THREE YEAR COMPRESSOR PARTS WARRANTY

Specifications

• EXTERIOR DIMENSIONS:
  WIDTH: 43.3″
  DEPTH: 36.3″
  HEIGHT: 79.6″
• 2″ BOX CAPACITY:  400 EA.
• UPRIGHT FREEZER RACK CAPACITY:  25 EA. UF442 RACKS
• 230V, 60HZ, 10 AMP, HP: ½  X ½
• UL/C-UL LISTED
• NEMA PLUG CONFIGURATION:  NEMA 6-15
• CASCADE REFRIGERATION SYSTEM
• SHIPPING WEIGHT: 759 LBS

Temp Control

• MICROPROCESSOR CONTROLLER SPECIFICATIONS
• TOUCH PAD KEYS AND FOUR LINE DISPLAY FOR EASY PROGRAMMING
• LARGE LED TEMPERATURE READOUT
• AUDIBLE AND VISUAL ALARMS WITH SILENCE KEY FOR AUDIBLE ALARMS
• PROGRAMMABLE HIGH AND LOW TEMPERATURE ALARM SET POINTS
• PROGRAMMABLE ACCESS CODE TO LIMIT ACCESS TO SET POINTS AND CONTROLLER CONFIGURATION
• AUTOMATIC VOLTAGE BOOST TO COMPENSATE FOR LOW LINE VOLTAGES
• NORMALLY OPEN, NORMALLY CLOSED ALARM CONTACTS AND 4-20MA SIGNAL AVAILABLE TO CONNECT TO CENTRAL ALARM SYSTEM
• RS-232 SERIAL OUTPUT
• BATTERY BACKUP ON ELECTRONICS DURING POWER OUTAGES
• TEMPERATURE RANGE: -50°C TO -86°C
