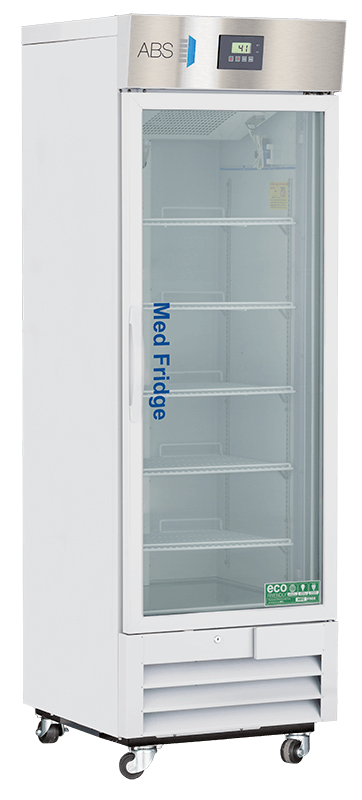

16 CU. FT. PHARMACY GLASS DOOR REFRIGERATOR

Product Description

The Pharmacy Standard Glass Laboratory Refrigerators are purpose built for scientific and medical applications.  Standard Series Glass Door Laboratory Refrigerators feature a digital microprocessor temperature controller allowing for the precise temperature management necessary for critical samples and supplies.  A forced air directional refrigeration system provides superior temperature uniformity and recovery after door openings.

The temperature display and alarm module offers product security with a monitoring and alarm system.  Real-time sample simulated temperatures are constantly displayed and supported by audible/visual high and low temperature alarms.

The acceptable temperature ranges for vaccine storage are 36°F to 46°F (or 2°C to 8°C) in the refrigerator and -58°F to 5°F (or -50°C to -15°C) in the freezer.

Environmentally friendly, natural hydrocarbon (HC) refrigerants (not containing hydrofluorocarbons) vastly reduce global-warming potential (GWP) while meeting new EPA/SNAP mandates and UL, ASHRAE compliance guidelines.

Details

• 16 CU. FT. CAPACITY
• SENSOR ERROR ALARM
• POWER FAILURE ALARM
• RESETTABLE 1-POINT MIN/MAX HISTORY
• REMOTE ALARM CONTACTS
• ALARM VALIDATION (AUDIBLE, VISUAL, AND REMOTE ALARM)
• ALARM MUTE WITH RING BACK
• 5 TOTAL SHELVES, 3 ADJUSTABLE PLUS 2 ADDITIONAL
• VACCINE STORAGE POWER CORD WARNING LABEL
• FORCED DRAFT AIR CIRCULATION
• KEYED DOOR LOCK
• MAGNETIC DOOR GASKET FOR POSITIVE SEAL
• HEAVY DUTY DOOR HANDLE
• SWIVEL CASTERS (3 ½”)
• LED INTERIOR LIGHTS ARE SAFETY SHIELDED AND SWITCH CONTROLLED
• HYDROCARBON, NATURAL REFRIGERANT (R290)
• PHARMACY REFRIGERATOR/FREEZER TOOLKIT AND TEMPERATURE LOGS
• TWO YEAR PARTS AND LABOR WARRANTY, PLUS AN ADDITIONAL THREE YEAR COMPRESSOR PARTS WARRANTY

Specifications

• EXTERIOR DIMENSIONS:
  WIDTH: 25”
  DEPTH: 29 ¾”
  HEIGHT: 79” WITH CASTERS; 75 ½” WITHOUT CASTERS
• CYCLE DEFROST
• 115V, 60 HZ, 3 AMPS, 1/5 HP
• ETL LISTED
• SHIPPING WEIGHT: 283 LBS

Controller

• MICROPROCESSOR TEMPERATURE CONTROLLER
• ADJUSTABLE OPERATING TEMPERATURE RANGE: 36°F TO 46°F (2°C TO 8°C)
• TEMPERATURE MONITOR DEVICE (TMD) COMPLIES WITH THE CURRENT CDC GUIDELINES, WITH 3 YEARS CERTIFICATION OF CALIBRATION, “BUFFERED” PROBE IN THE PRODUCT SIMULATED SOLUTION, MIN/MAX MEMORY. F/C SWITCHABLE, FIELD INSTALLABLE, AND VISUAL & AUDIBLE TEMP ALARM
• STANDARD DIGITAL TEMPERATURE DISPLAY AND ALARM MODULE WITH BATTERY BACK-UP TO SUPPORT TEMPERATURE MONITORING AND ALARMS
• SAMPLE SIMULATED DIGITAL TEMPERATURE DISPLAY; .1° RESOLUTION
• ADJUSTABLE TEMPERATURE DISPLAY IN CELSIUS OR FAHRENHEIT
• AUDIBLE AND VISUAL HIGH/LOW TEMPERATURE ALARMS
• 2 PROBES; 1 IN AIR AND 1 IN SAMPLE BOTTLE
