(1) Centrifuge, (1) Horizontal Rotor, (4) Buckets, (4) Adapters 13 x 75/100 mm, (4) Adapters 16 x 75/100, (4) Bio-containment Lids (optional)

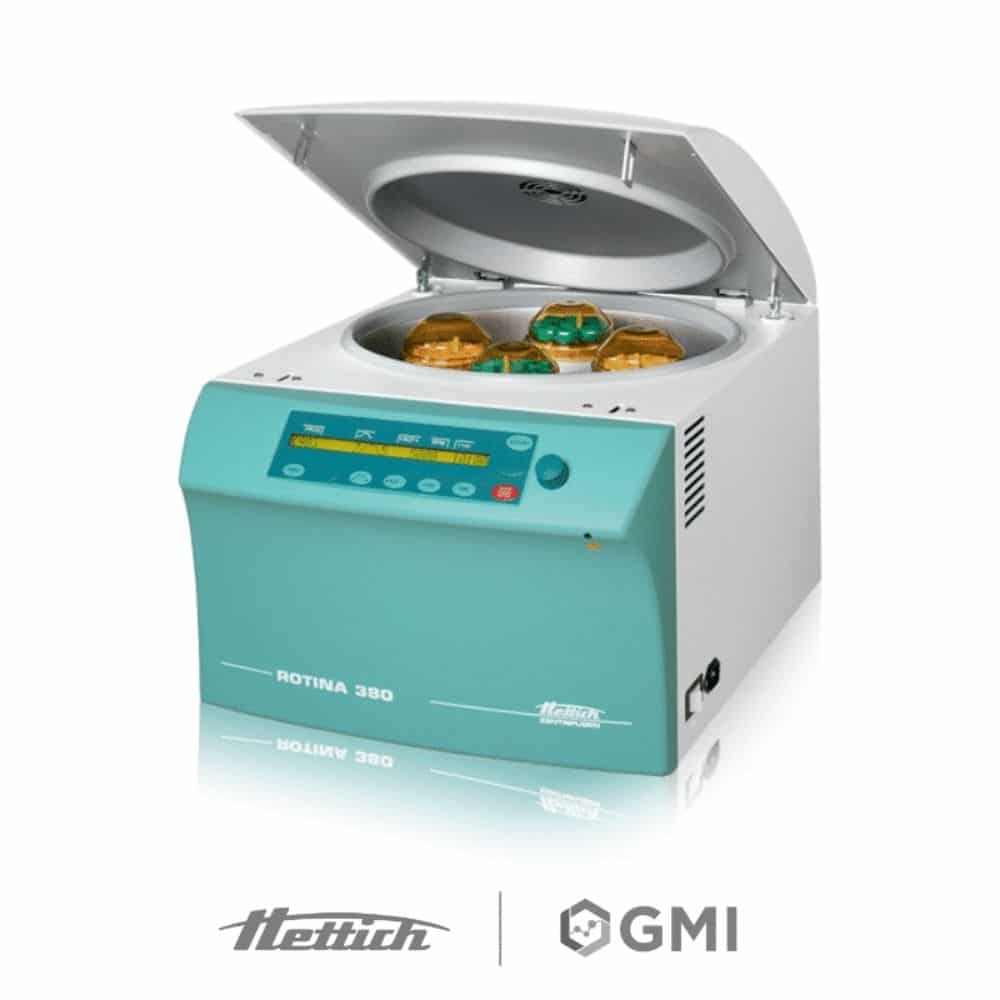

Hettich Rotina 380 | 380 R (Refrigerated) Benchtop Centrifuge
$8,015.00 – $12,940.00
Not sure which configuration is right for your application? Schedule a free consultation with our technical consultants today!
Schedule a consultationProduct Description
Max. Capacity
4 x 290 mL
Max. RPM/RCF
15,000/24,000
Temperature Control
-20 to +40 ºC (380 R)
BLOOD | CELL CULTURE | PLATES | BOTTLES
Five Year Warranty
Quiet Operation
Functional Design
Enhanced Safety
Technical Specifications
| Model | ROTINA 380 | ROTINA 380 R |
| Max. Capacity | 4 x 290 ml | 4 x 290 ml |
|
Max. RPM/RCF
|
15,000/24,400 | 15,000/24,400 |
| Temp. Control | Ambient |
-20 °C to +40 °C
|
|
Dims. (HxWxD) mm
|
418 x 457 x 600 |
418 x 457 x 750
|
|
Dims. (HxWxD) in
|
16.5 x 18 x 23.5 |
16.5 x 18 x 29.5
|
| Weight (kg) | 58.5 | 88.5 |
| Weight (lbs) | 129 | 195 |
| Power Supply | 120 V | 120 V |
| Warranty | 5-years | 5-years |
| Warranty | 5-years | 5-years |
Packages
ROTINA 380 | 380R Application Packages
BLOOD | CELL CULTURE | PLATES | BOTTLES
ROTINA 380 / ROTINA 380 R
BLOOD TUBE PACKAGE – 4
4170-10-0081 | 4170-10-0092
The ROTINA 380 Blood Tube Package 4 comes complete with everything you need to perform your application. This includes the ROTINA 380 or ROTINA 380 R centrifuge, swing-out rotor, buckets, adapters for 13 x 75/100 mm and 16 x 75/100 mm tubes and optional bio-containment lids. Many a-la-carte options are also available, contact us for more details.
PACKAGE CONTENTS
| TUBE QTY. | VOLUME (mL) | SIZE (mm) | RPM | RCF |
| 64 | 1.6 – 7 | 13 x 75/100 | ≤ 5,000 | ≤ 4,668 |
| 52 | 4 – 10 | 16 x 75/100 | ≤ 5,000 | ≤ 4,668 |
ROTINA 380 / ROTINA 380 R
BLOOD TUBE PACKAGE – 2
4170-10-0079 | 4170-10-0090
The ROTINA 380 Blood Tube Package 2 comes complete with everything you need to perform your application. This includes the ROTINA 380 or ROTINA 380 R centrifuge, swing-out rotor, buckets, adapters for 13 x 75/100 mm and 16 x 75/100 mm tubes and optional bio-containment lids. Many a-la-carte options are also available, contact us for more details.
PACKAGE CONTENTS
(1) Centrifuge, (1) Horizontal Rotor, (4) Buckets, (2) Adapters 13 x 75/100 mm, (2) Adapters 16 x 75/100, (4) Bio-containment Lids (optional)
| TUBE QTY. | VOLUME (mL) | SIZE (mm) | RPM | RCF |
| 32 | 1.6 – 7 | 13 x 75/100 | ≤ 5,000 | ≤ 4,668 |
| 26 | 4 – 10 | 16 x 75/100 | ≤ 5,000 | ≤ 4,668 |
ROTINA 380 / ROTINA 380 R
CELL CULTURE PACKAGE – 4
4170-10-0088 | 4170-10-0099
The ROTINA 380 Cell Culture Package 4 comes complete with everything you need to perform your application. This includes the ROTINA 380 or ROTINA 380 R centrifuge, swing-out rotor, buckets, adapters for 15 and 50 mL tubes and optional bio-containment lids. Many a-la-carte options are also available, contact us for more details.
PACKAGE CONTENTS
(1) Centrifuge, (1) Horizontal Rotor, (4) Buckets, (4) Adapters 15 mL, (4) Adapters 50 mL, (4) Bio-containment Lids (optional)
| TUBE QTY. | VOLUME (mL) | SIZE (mm) | RPM | RCF |
| 36 | 15 Conical | 17 x 120 | ≤ 5,000 | ≤ 4,863 |
| 16 | 50 Conical | 29 x 115 | ≤ 5,000 | ≤ 4,863 |
ROTINA 380 / ROTINA 380 R
CELL CULTURE PACKAGE – 2
4170-10-0086 | 4170-10-0097
The ROTINA 380 Cell Culture Package 2 comes complete with everything you need to perform your application. This includes the ROTINA 380 or ROTINA 380 R centrifuge, swing-out rotor, buckets, adapters for 15 and 50 mL tubes and optional bio-containment lids. Many a-la-carte options are also available, contact us for more details.
PACKAGE CONTENTS
(1) Centrifuge, (1) Horizontal Rotor, (4) Buckets, (2) Adapters 15 mL, (2) Adapters 50 mL, (4) Bio-containment Lids (optional)
| TUBE QTY. | VOLUME (mL) | SIZE (mm) | RPM | RCF |
| 18 | 15 | 17 x 120 | ≤ 5,000 | ≤ 4,863 |
| 8 | 50 | 17 x 115 | ≤ 5,000 | ≤ 4,863 |
ROTINA 380 / ROTINA 380 R
PLATE PACKAGE
4170-10-0089 | 4170-10-0100
The ROTINA 380 Plate Package comes complete with everything you need to perform your application. This includes the ROTINA 380 or ROTINA 380 R centrifuge, swing-out rotor and buckets. Many a-la-carte options are also available, contact us for more details.
PACKAGE CONTENTS
(1) Centrifuge, (1) Horizontal Rotor, (2) Buckets
| TUBE QTY. | VOLUME (mL) | SIZE (mm) | RPM | RCF |
| 10 | Microtiter | — | ≤ 4,000 | ≤ 2,397 |
ROTINA 380 / ROTINA 380 R
BOTTLE PACKAGE
4170-10-0084 | 4170-10-0095
The ROTINA 380 Bottle Package comes complete with everything you need to perform your application. This includes the ROTINA 380 or ROTINA 380 R centrifuge, swing-out rotor and buckets. Many a-la-carte options are also available, contact us for more details.
PACKAGE CONTENTS
(1) Centrifuge, (1) Horizontal Rotor, (4) Buckets, (4) Adapters, (4) Bio-containment Lids (optional)
Note: Compatible with other bottle sizes up to 290 ml please inquire
| BOTTLE QTY. | VOLUME (mL) | SIZE (mm) | RPM | RCF |
| 4 | 250 | 61 x 122 | ≤ 5,000 | ≤ 4,863 |
| 4 | 290 | 62 x 137 | ≤ 5,000 | ≤ 4,863 |
| Weight | 1600 oz |
|---|---|
| Dimensions | 40 × 48 × 48 in |
| Rotor Package | NO ROTOR, BLOOD TUBE PACKAGE – 4, BLOOD TUBE PACKAGE – 2, CELL CULTURE PACKAGE – 4, CELL CULTURE PACKAGE – 2, PLATE PACKAGE, BOTTLE PACKAGE |
