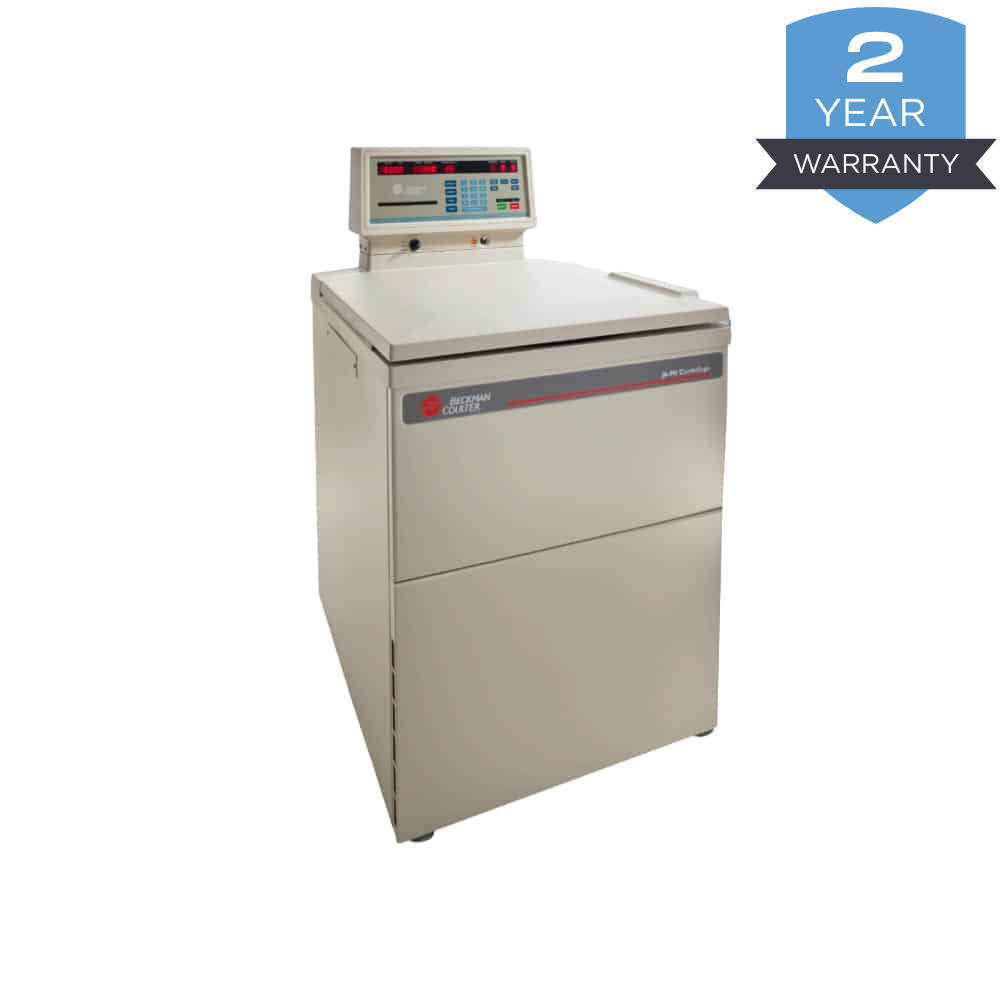

Beckman J6-MI High Capacity Centrifuge Series (2-Year Warranty)
Original price was: $11,967.00.$9,967.00Current price is: $9,967.00.
2-Year Full Warranty
Not sure which configuration is right for your application? Schedule a free consultation with our technical consultants today!
Schedule a consultation Have One To Sell?Product Description
The Beckman J6-MI is a versatile high capacity centrifuge that is capable of delivering a high level of performance in separation techniques for bioprocessing, clinical, research and blood separation laboratories.
The J6-MI centrifuge solution uniquely designed to achieve key separations in volumes up to 6 Liters.
Enjoy maintenance free operations due to the rugged, brushless induction drive which delivers high torque, fast acceleration, and extended motor life due to low wear. Experience full control with up to ten operator definable acceleration and deceleration profiles. Eliminate rotor imbalance with the exclusive ARIES rotors; designed to auto correct opposing, imbalanced loads up to 100 grams without manual intervention or delay.
Let our team of experts help you find the perfect equipment for your application and budget, schedule a free meeting now:
Technical Specifications
| Height | 91.0 cm (35.5 in); with door open 160 cm (63 in) |
| Width | 71.1 cm (28 in) |
| Depth | 83.8 cm (33 in) |
| Weight | 252 kg (555 lb) |
| Approximate Acceleration Time | Select from 9 acceleration rates (including maximum acceleration) |
| Approximate Deceleration Time | Select from 9 deceleration rates (including maximum dynamic braking, or a coasting stop from full speed) |
| g Force | 6,835 x g |
| Max Capacity Volume Range | 6,000 mL |
| Max Speed | 6,000 rpm |
| Maximum Heat Dissipation into Room under Steady-State | 1.9 kW (7,000 Btu/hr) |
| Noise Level 1 Meter in Front of Centrifuge | < 63 dBA |
| Set Speed | Actual rotor speed ±20 rpm of set speed |
| Set Temperature | -20° C to +40° C |
| Set Time | Up to 99 hr 59.9 min for timed runs; entries greater than 99 hr 59.9 min signal “hold” or continuous operation |
| Speed Range | 100 to 6,000 rpm |
| Temperature Control | ±2° for temperature from 0° to ambient, after equilibration.1 Temperature Control at higher or lower temperatures depends on the rotor and speed used (some rotors have a narrower range of Temperature Control) |
| Ambient Temperature Range | 16° C to 38° C |
| Clearances Required | 15.0 cm (6.0 in) |
| Humidity Restrictions | < 95% (noncondensing) |
| Pollution Degree | 2 |
| Rotor Chamber Diameter | 58.0 cm (23 in) |
| Time — Actual Display | Indicates time remaining for timed runs, time elapsed for continuous operation |
| Finish | Urethane paint on chamber door, vinyl paint on other painted surfaces, Mylar 2 on control panel |
| Operating Modes | Key switch selects NORMAL, PROGRAM LOCK, or ZONAL operation |
Beckman J6 Series
The Beckman J6 Series is a line of versatile centrifuges for high-capacity laboratory applications. Designed with important safety features and special diagnostics built in, the J6 centrifugal systems are compatible with a wide range of rotors, carriers, adapters and other accessories. The Beckman J6 Series centrifuge is available in three models: the basic, easy-to operate analog Beckman J6-HC centrifuge, the more sophisticated digital Beckman J6-MC centrifuge, and the digital Beckman J6-MI centrifuge with brushless induction drive.
The Beckman J6 centrifuges are designed to provide maximum uptime and increased productivity. These systems can be equipped with the ARIES (Automatic Rotor Imbalance Equilibrating System) rotors which eliminate manual sample balancing. The rugged belt-drive motors also provide higher torque and faster acceleration, and offer low wear and long motor life.
Built with a sophisticated detection system, the Beckman J6 centrifuge prevents operation in the event of rotor imbalance, overspeed or overtemperature conditions. An electronic door interlock also ensures that the chamber door is securely closed before a run can begin, and remains locked during the course of the run – ensuring operator safety. For maximum versatility, optional Beckman rotors and accessories are available to assist any laboratory in getting the most from the J6 Series instruments.
| Weight | 1600 oz |
|---|---|
| Dimensions | 40 × 48 × 48 in |
| Manufacturer | |
| Instrument Type |
