ABS Auto Jr., 6000 Vials Polycarbonate Package System
Not sure which configuration is right for your application? Schedule a free consultation with our technical consultants today!
Schedule a consultationProduct Description
The unique fiberglass restricted-opening neck design of the ABS Auto Jr. reduces LN₂consumption rates far below other auto-filling units. Under laboratory testing providing one opening per day, the ABS Auto Jr. operated and maintained “cryogenic temperatures” for over a month on one 180-liter LN₂ supply tank. Competitive units can consume three or four supply tanks per month.
The Auto Jr is the economical auto-fill for every lab. Every Auto Jr comes standard with: 6ft. stainless-steel armor-plated transfer hose, 1/3 year parts and labor warranty, roller base, stainless steel inventory racks, and the Sentry LN2 Controller.

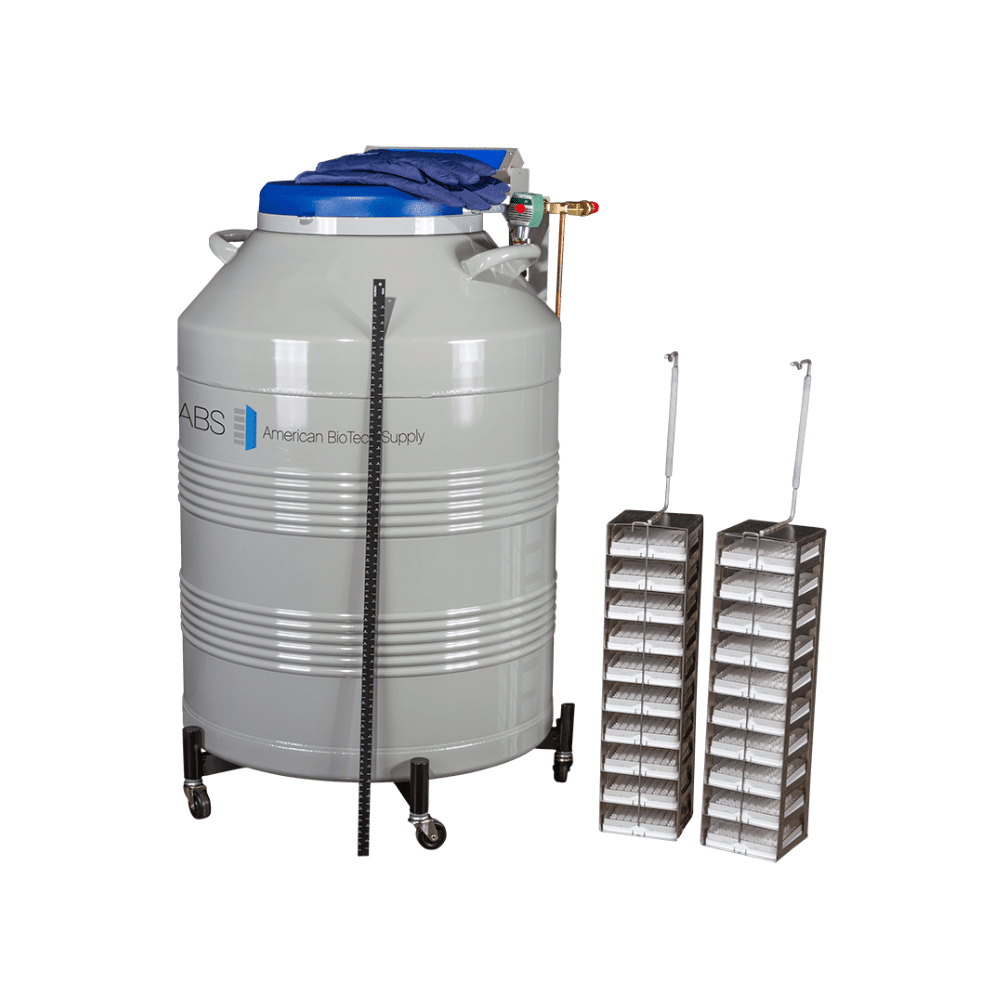

ABS Auto Jr. Polycarbonate package systems include: ABS Auto Jr. Tank, Sentry LN2 Controller, stainless steel rack inventory system, transfer hose, CryoGloves, LN₂ measuring rod, and polycarbonate boxes (25 cell, 81 cell, or 100 cell).
Details
- SENTRY CONTROLLER
- UL-LISTED TRANSFORMER
- STAINLESS STEEL ARMOR-PLATED TRANSFER HOSE
- (6) 10-2 HANGING RACKS (10 BOXES PER RACK)
- (60) 81/100 CELL POLYCARBONATE BOXES
- STATE OF THE ART HANGING RACK DESIGN
- LIQUID LEVEL MEASURING RULER
- ONE PAIR OF CRYOGLOVES
- CAST ALUMINUM ROLLER BASE
- LID WITH LOCKING PROVISION & PROTECTIVE BOOT
- FIBERGLASS RESTRICTED OPENING NECK DESIGN
- STAINLESS STEEL VACUUM TANK
- LIQUID LEVEL MEASURING RULER
- ONE-YEAR WARRANTY ON ALL PARTS AND LABOR
- THREE-YEAR VACUUM WARRANTY
Specifications
- TOTAL VIAL CAPACITY (2 ML VIAL) – 6000
- TOTAL BOX CAPACITY* – 60
- RACK CAPACITY – 6
- BOXES PER RACK – 10
- VIALS PER BOX (2 ML) – 100
- LN2 CAPACITY (LITERS) – 165
- STATIC EVAPORATION RATE** (LITERS/DAY) – 0.84
- STATIC HOLDING TIME** (DAYS) – 194
- POWER REQUIREMENT – 24 VAC
- NECK DIAMETER (MM) – 215.9
- EXTERIOR HEIGHT (MM) – 990.6
- EXTERIOR DIAMETER (MM) – 683.3
*STORAGE BOXES ARE 5 1/5” X5 1/5” ‘X 2″ WITH A CELL CAPACITY BETWEEN 16-144.
**STATIC EVAPORATION RATE AND STATIC HOLDING TIME ARE NOMINAL. ACTUAL RATE MAY BE AFFECTED BY THE NATURE OF THE CONTENTS, ATMOSPHERIC CONDITIONS, CONTAINER HISTORY AND MANUFACTURING TOLERANCES.
Controller
- TEMPERATURE DISPLAY (°C)
- LEVEL ACCURACY WITH 4 DIRECT READ SENSORS
- LARGE FORMAT LED DISPLAY
- ALARM RINGBACK
- REDUNDANT LEVEL SENSOR SYSTEM
- LIQUID LEVEL INDICATOR
- ALARM PACKAGE (AUDIBLE, VISUAL AND REMOTE)
º LEVEL, HIGH AND LOW
º HIGH TEMPERATURE
º SENSOR FAILURE
- REMOTE MONITORING SYSTEM AVAILABLE
