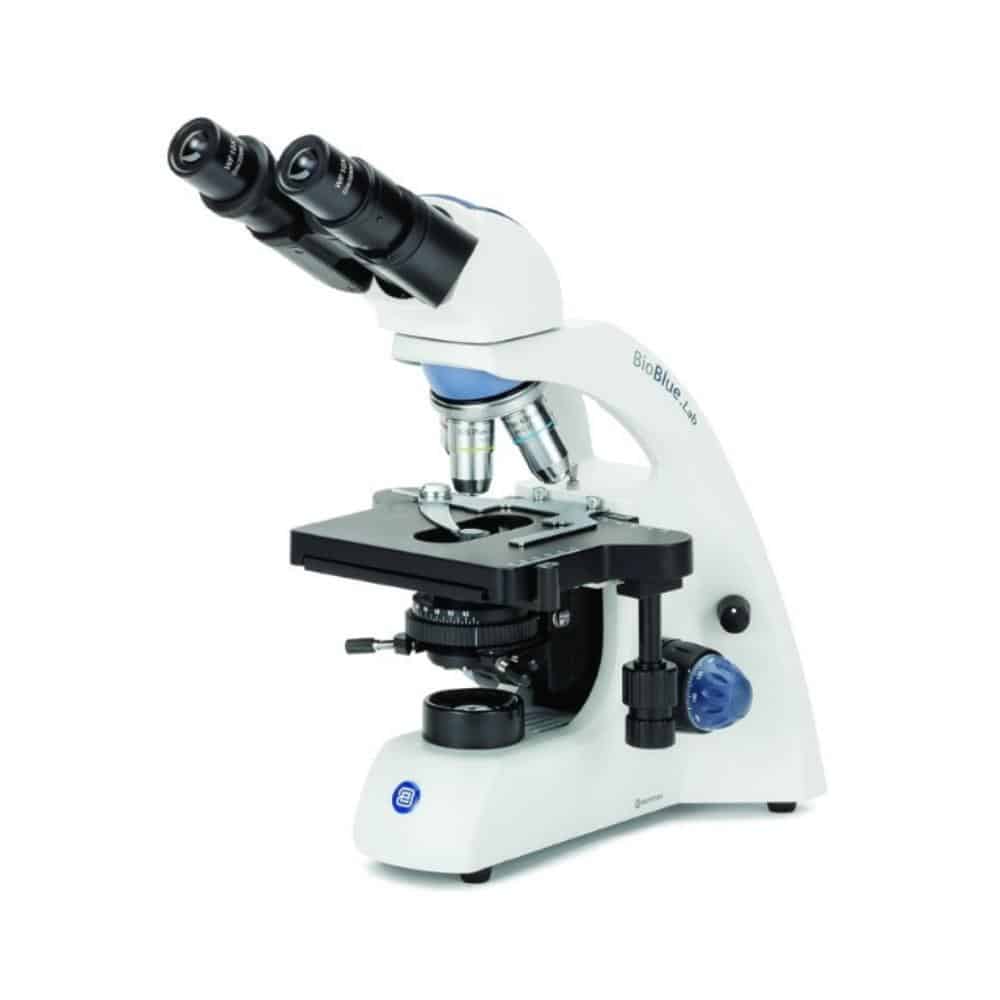

Euromex BioBlue BB.1152-PL Lab Microscope

Product Description

MODEL: BB.1152-PL

EYEPIECES

Widefield WF10X/20mm.

HEAD

Binocular head have 30º inclined with ø30mm tubes. The interpupillary distance is adjustable between 48 to 75mm. Diopter adjustment +/- 5 on left tube. All heads are 360º rotatable and secured with a screw.

NOSEPIECE

Reversed quadruple nosepiece on ball bearings.

OBJECTIVES

Equipped with PLAN objectives:

4x/0.10,

10x/0.25

S40x/0.65

S100x/1.25

Objectives with “S” means spring loaded. Total magnification 1000x

All optics are anti-fungus treated and anti-reflection coated for maximum light throughput.

STAGE

Rackless 150x140mm stage with mechanical 75x40mm XY translation stage.

CONDENSER

Heigh adjustable ABBE condenser N.A. 1.25 with iris diaphragm and filter holder. Supplied with a white filter.

FOCUSING

Coaxial coarse and fine adjustments with 200 graduations. Precision 1.5 microns per graduation, 0.3mm per rotation. Total travel range is approximately 28mm. Supplied with an adjustable rack stop to prevent damage to sample and objectives. The coarse adjustments are equipped with friction control.

NEOLED TRANSMITTED ILLUMINATION

The 3W adjustable NeoLED transmitted illumination is powered by an internal 100-240V power supply making it suitable for worldwide use.

PACKAGE CONTENT

Smart styrofoam packaging ensures a low environmental footprint while maintaning maximum safety during transport. Supplied with power cord, dust cover, a spare fuse, white filter, user manual and 5ml immersion oil.
