SRI 8610C Gas Chromatograph (GC) BTU Gas Analyzer GC System

SRI 8610C Gas Chromatograph (GC) BTU Gas Analyzer GC System

Request Info or Pricing

Guaranteed 12 hour response time
We respect your privacy, we do not disclose to 3rd parties.
  • TCD Detector
  • 10-port Gas Sampling Valve
  • 1 channel PeakSimple Data System
  • 30 meter x 0.53mm MXT-1 Capillary Column
  • 4 channel PeakSimple Data System
  • 61 meter HayeSep-D Column
  • ...on the compact 8610C chassis
Product Description

The BTU Gas Analyzer GC system is preplumbed and ready to measure N2 methane CO2 ethane H2O propane iso- and normal butanes iso- and normal pentanes and C6 plus backflush. The main benefits of the SRI BTU Gas Analyzer system aresimplicity low cost and the ability to determine the water content of the gas.

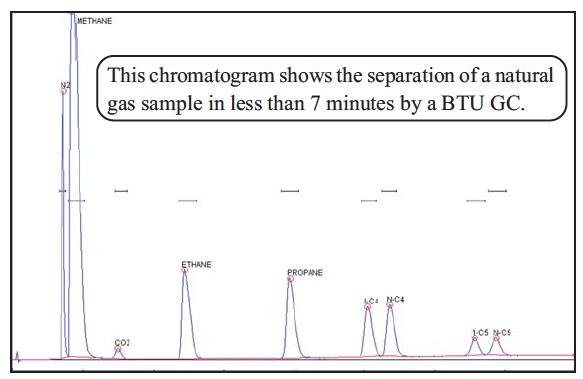

The SRI BTU Gas Analyzer uses just a single 10 port gas sampling valve and two columns and is tolerant of valve timing variations or operator adjustments. Unlike the widely used competitive micro GCs the SRI BTU GasAnalyzer GC system is not only tolerant of water in the sample gas but it actually generates a quantifiable water peak. The seven minute analysis may be longer than a micro GC analysis but the BTU GC does not need baking out between runs. Therefore about the same number of runs may be made per day with the BTU GC as with a typical micro GC.

The BTU Gas Analyzer can be configured with a TCD detector only for detection limits in the 200-500ppm range. Other detectors can be added such as the HID FID or FPD for applications requiring higher sensitivity or selectivity.

 SRI 8160 SRI  Gas Chromatograph BTU Gas Analyzer Systems Specifications

Width 19 inch
Height 13.5 inch
Depth 14.5 inch
Detector Combined FID/TCD
Temp range 25 to 400°C
Temp control programmable up to 15 ramp and dwell times
Stability ±0.1°C
Heating rate 50°C per minute to 300°C; 20°C per minute from 300 to 400°C
Cooling rate 300 to 50°C in 5 minutes
Gas flow control electronic pressure control
Power 115V 50/60 Hz
